Different Types of Window Glass
Low Emissivity (Low-E) Glass
Low-e glass is a type of energy efficient glass. It has a special microscopic coating that reduces heat transfer and reflects interior heat back into the room. The magnetron applied coating is a mixture of metals and oxides that fuse to the surface of the glass and it is this coating that helps to improve the energy efficiency of your home.
The coating is so thin it can't be seen by the eye and can be compared to the effect of placing a penny coin on the top of the Shard building in London.

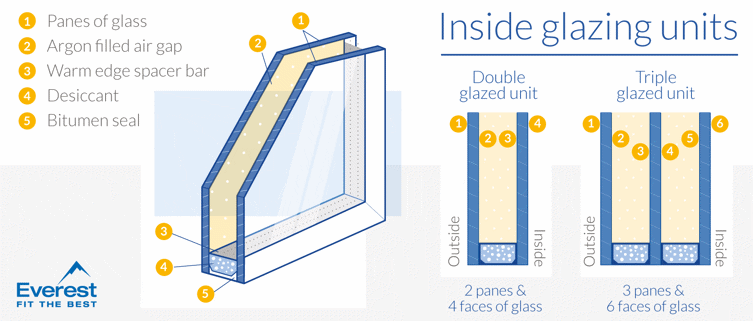

Low-e glass is used in conjunction with Low-iron glass in our Energy Saver Plus double and triple glazing units, to create a very energy efficient window.
Low Iron Glass
Low-iron glass has a distinct clarity that can allow more UV light through the glass for increased solar gain. Solar panels use low-iron glass for superior harvesting.
Low-iron glass has a distinct clarity that can allow more UV light through the glass for increased solar gain. Ordinary glass has 475 parts per million (ppm) of iron content in the glass – which causes the blue/green hue of some types of glass. Low-iron glass has 70% less iron at only 150 ppm, making the glass visibly clearer to the eye.
Aquariums and museum displays use low-iron glass for superior visibility.
As mentioned above, Low iron glass is combined with Low-e glass in our Energy Saver Plus glazing units to create an energy-efficient window. The Low iron glass allows more UV light and heat energy into the room, while the Low-e glass acts as insulation keeping the heat energy in the room.
Glass is toughened by heating the pane to extreme temperatures of over 600˚C and then cooled rapidly. This results in a change to the break pattern of the glass.

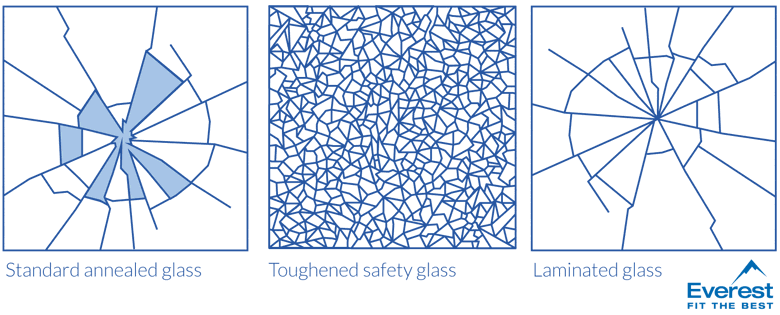

When toughened glass is broken, it forms a pattern of small pieces that reduces any risk of injury – compared to standard glass with a break pattern of large shards. For this reason, it's used as safety glass.
Laminated glass has an internal PVB core that makes it much more difficult to break. It is used for safety in skylights to avoid falling glass and for superior security.
The laminated glass is created by sandwiching a layer of PVB (polyvinyl butyral) between two sheets of glass that are bonded together. The result is a super safe glass that doesn’t shatter in the same way that standard glass does. The glass is also much more difficult to smash open as a means to gain entry to a property.
Laminated glass also has the additional benefit of blocking up to 99% of harmful UV, protecting furnishing and fabrics from fading in direct sunlight.
Safety glass is required by building regulations in glazed doors and windows at ground level (see below). But it can also be fitted to any windows or glazed doors you want to secure.
If you have small children or large pets, safety glass offers peace of mind. An internal glass door or sliding glass doors are a target for accidents for children or large dogs to run through. And the damage caused by large shards of standard glass is life-changing.

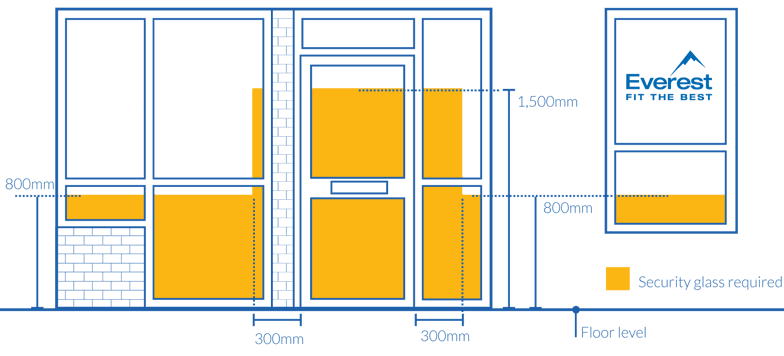

Building regulations stipulate that any glazing in the following areas must be safety toughened glass:
- Doors up to 1500mm from the floor
- Windows up to 800mm from the floor
- Side panels to a door within 300mm to the sides of the door
Obscure glass (sometimes called privacy glass) allows you to have more privacy in a room but without the need for blinds so you can retain the natural light.
Toilets, bathrooms, glazing in a front door facing a road or a bedroom overlooked by a neighbour can all benefit from privacy glass.
Technically, there are two types of obscure glass. Acid-etched has a frosted appearance which can be applied as a solid frost or in a pattern. Textured glass is formed in the production line when a piece of molten glass is pressed into a pattern mould. Once cooled, the glass retains a tactile pattern. Depending on the pattern, the glass can still have some level of visibility through it or can be fully obscured.
Acoustic glass is specialist glass installed in noise reduction windows that can reduce the transference of sound and noise through the glazed window.
Acoustic glass mainly reduces noise by using different surfaces and thicknesses to disrupt the energy of the soundwave. Although it also works through a combination of:
- The thickness of the glass
- Asymmetric thicknesses of glass to disrupt the soundwaves
- Argon gas between the panes
- Depth of gap between the panes
- Sound dampening laminate between panes
A window with specialist acoustic laminated glass can reduce noise by up to 40db.
Solar Control Glass
Solar control glass is designed to reduce solar gain. It has a specialist metallic coating applied to reflect away infrared radiation whilst allowing UV light through the glass. This results in a glass that can allow the maximum amount of light in balance with reducing the heat from the sun.
The main reason to use solar control glass is to avoid overheating and the need to use mechanical cooling with an aim for a more energy-efficient house. Solar control is also beneficial to create a more comfortable living environment.
Solar control glass is recommended where solar gain can be a problem in summer months for example windows facing south and southwest.
